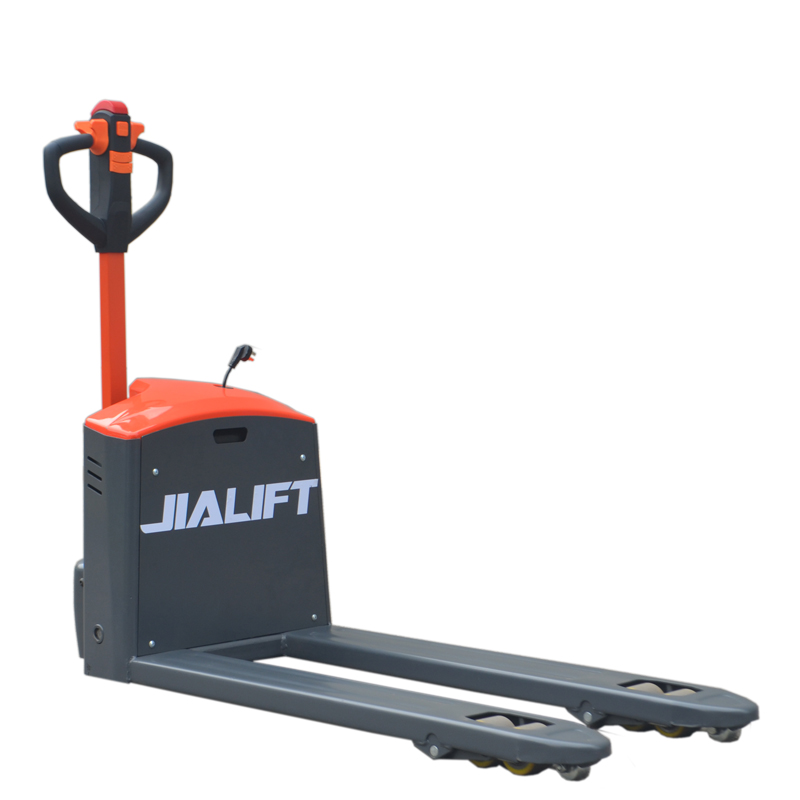

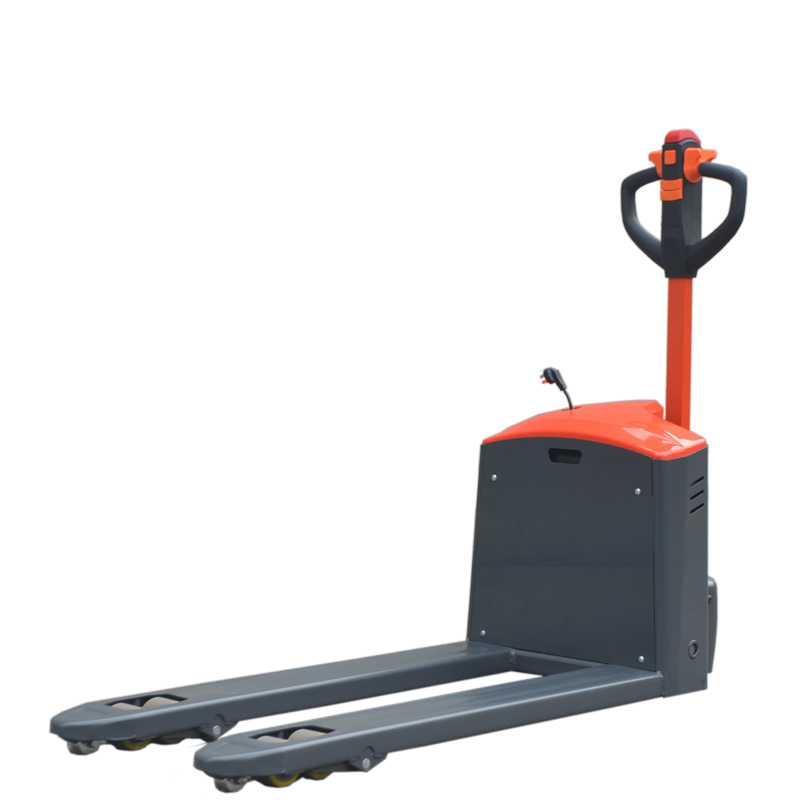

Electric pallet truck(Pedestrian) SL20S6L Rated traction weight 2000kg Lifting height 200mm
Electric Pallet Truck SL15S6&SL20S6.pdf
Electric pallet truck(Pedestrian) Rated traction weight 2000kg Lifting height 200mm
Product Features
1.The vehicle size is small,small turning radius can
be carried out in a narrow space occasions.
2.The sturdy metal cover protects the motor andwheels while also
reliably protecting theoperator's feet for increased safety.
3.Large capacity maintenance-free battery(optional lithium
battery),built-in charger,convenient for customers to use.
4.The whole handle with password lock,with CANcommunication,upright
walking function,remaining power LCD display.
5.Efficient DC drive unit with strong power,equipped with
electromagnetic brake system,improve the safety of the vehicle.

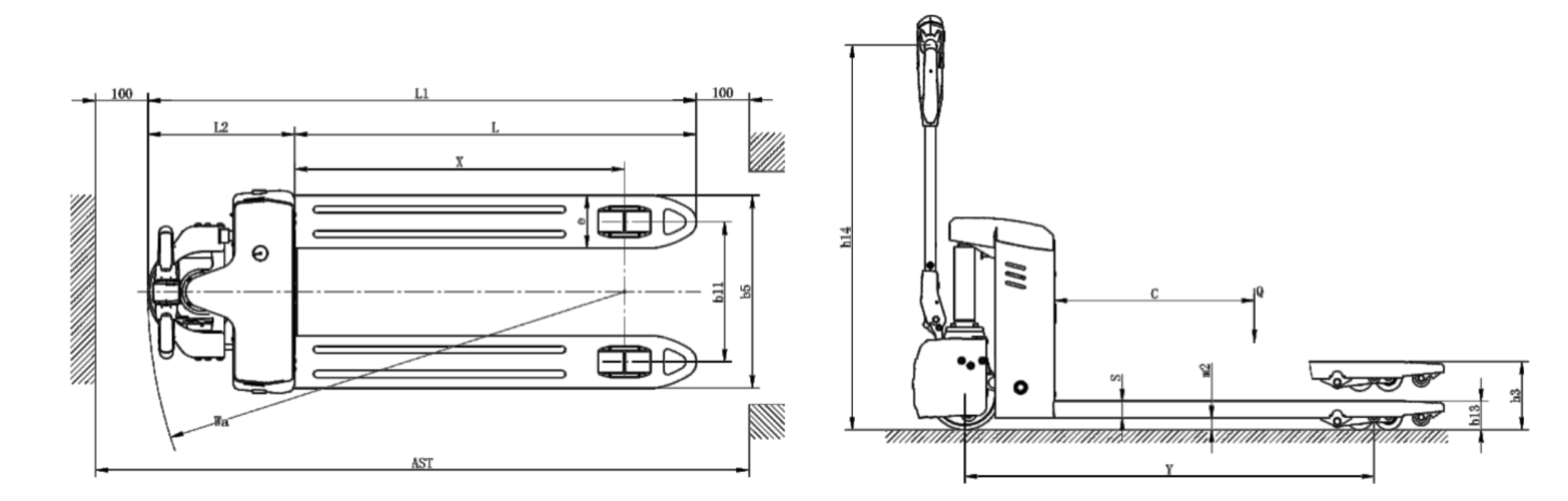

| Characteristics | |||
| Model | SL20S6 | ||
| Power unit | Electric | ||
| Operation | Pedestrian | ||
| Rated traction weight | Q(kg) | 2000 | |
| Load centre | c(mm) | 600 | |
| Axle centre to fork face | x(mm) | 944 | |
| Wheel base | y (mm) | 1210 | |
| Service weight with battery | kg | 148 | |
| Wheels/Tyres | |||
| Wheels type | PU | ||
| Driving wheel size | Φ×w(mm) | Φ210×70 | |
| Bearing wheel size | Φ×w(mm) | Φ80×60 | |
| Wheels,number front/rear (x =driven) | 1x/4 | ||
| Track width | b11(mm) | 400/535 | |
| Dimensions | |||
| Lift | h3 (mm) | 200 | |
| Overall height(With handle | h14(mm) | 775/1115 | |
| Fork Height,Lowered | h13(mm) | 85 | |
| Overall length | l1(mm) | 1570 | |
| Length to fork face | l2(mm) | 420 | |
| Overall width | b1/b2(mm) | 580/685 | |
| Fork dimensions | s/e/l(mm) | 50/150/1150 | |
| Width of forks | b5(mm) | 550/685 | |
| Min.Ground clearance | m2(mm) | 35 | |
| Aisle width with pallet 1000x 1200 across forks | Ast(mm) | 1770 | |
| Aisle width with pallet 800 x 1200 along forks | Ast(mm) | 1820 | |
| Min.Turning radius | Wa(mm) | 1364 | |
| Performance | |||
| Travel speed,laden/unladen | (km/h) | 4.2/4.5 | |
| Lifting speed,with/without load | (mm/s) | 30/36 | |
| Lowering speed,with/without load | (mm/s) | 55/40 | |
| Maximum climbing ability,with/without load | (%) | 5/10 | |
| Service brake | Electromagnetic | ||
| Drive | |||
| Drive motor,60 minute rating | (kW) | 1.0 | |
| Battery voltage/rated capacity | (V/Ah) | 48/20 | 48/30 |
| Battery weight (±5%) | (kg) | 12 | 17 |
| Other | |||
| Type of drive control | DC | ||
| Noise level at operator 's ear | (dB(A)) | ≤70 | |
| Type of steering | Mechanical | ||
|
|
