| Brand Name : | JIALIFT |
| Model Number : | SL20 |
| Certification : | CE，UL |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 200 units per day |
| Delivery Time : | 3 days |

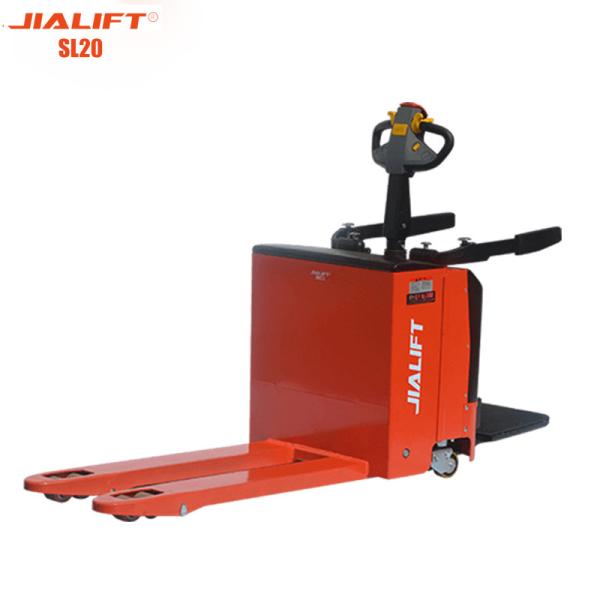

Electric pallet truck(Standing on) SL20 Rated traction weight 2000kg Lift height 200mm Electric Pallet Hauler
Electric
Pallet Truck SL20.pdf
Electric pallet truck(Standing on) Electric Rated traction weight
2000kg Lift height 200mm Electric Pallet Hauler
1.lmported AC controller, with stepless speed regulationand reverse
braking function.
2.Original imported controller with over voltage, lowvoltage, over
current, high temperature, short circuit andother protection
functions.
3.An emergency reverse switch is installed on the controlhandle to
prevent the body of the operator from beingcrushed when the vehicle
recovers out of contro.
4.There are up and down buttons on the left and right sidesof the handle. All operation functions are integrated onthe handle, whichis very convenient for operation.
5.The pedal foot is comfortable and equipped with shockabsorber,
which can quickly absorb the vibrationgenerated when the vehicle is
running and relieve theimpact brought by the road surface. Folding
arm guardcan be put back and forth freely, which can protect
safetyandimprove driving comfort.
6.The controller has self-diagnosis function, the fault codecan be
displayed after the hand-held unit is connectedwith the controller,
and the fault can be checked quicklyand accurately.
| Characteristics | ||
| Model | SL20 | |
| Power unit | Electric | |
| Operation | Standing on | |
| Rated traction weighl | Q(kg) | 2000 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 1050 |
| Wheel base | y(mm) | 1423 |
| Seryice weight with battery | kg | 500 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ250×80 |
| Bearing wheel size | Φ×w(mm) | Φ80×70 |
| additional wheels( dimensions) | Φ×w(mm) | Φ100×40 |
| Wheels, number front/rear(x = driven) | 1,2/4 | |
| Track width | b10(mm) | 627 |
| Track width | b11(mm) | 525 |
| Dimensions | ||
| Lift | h3(mm) | 200 |
| Height of seat/stand-on platform | h7(mm) | 132 |
| Overall height(With handle) | h14(mm) | 970/1315 |
| Minimum height of cargo fork | h13(mm) | 85 |
| Overalllength | l1(mm) | 1860 |
| Length to fork face | l2(mm) | 648 |
| Overall width | b1/b2(mm) | 776 |
| Fork dimensions | s/e/l(mm) | 1150(1220)/160/60 |
| Width of forks | b5(mm) | 540/685 |
| Min Ground clearance | m2(mm) | 16 |
| Aisle width with pallet 1000 x 1200 across forks | Ast(mm) | 2071 |
| Aisle width with pallet 800 x 1200 along forks | Ast(mm) | 2300 |
| Min.Turning radius | Wa(mm) | 1760 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 5.2/5.5 |
| Lifting speed, with/without load | (mm/s) | 35/45 |
| Lowering speed, with/without load | (mm/s) | 65/58 |
| Maximum climbing ability, with/without load | (%) | 6/8 |
| Service brake | Electromagnetic | |
| Drive | ||
| Driye motor.60 minute rating | (kW) | 1.5 |
| Lift motor rating at S3 15% | (kW) | 0.8 |
| Battery voltage/rated capacity | (V/Ah) | 24/200 |
| Battery weight (± 5%) | (kg) | 180 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator 's ear | (dB(A)) | ≤70 |
|
|
