Electric pallet truck(Pedestrian) SL15GI Rated traction weight 1500kg Lifting height 200mm
Electric Pallet Truck SL15GI.pdf
Electric pallet truck(Pedestrian) Rated traction weight 1500kg Lifting height 200mm
Product Features
1.The whole vehicle is small,and the turning radiuscan be handled
in a small space.
2.The included entry and exit roller guarantee thatthe vehicle can
easily enter the double-sidedtray.
3.Rugged metal cover protects the motor andwheels,but also reliably
protects the operator'sfoot to improve safety.
4.Built-in charger provides convenience tocustomers.
5.Adopt multi-function import control systems,make operational and
maintenance simple andconvenient,improve the stability of the
vehicle.
6.Improve the line function layout and reduce thefault rate.

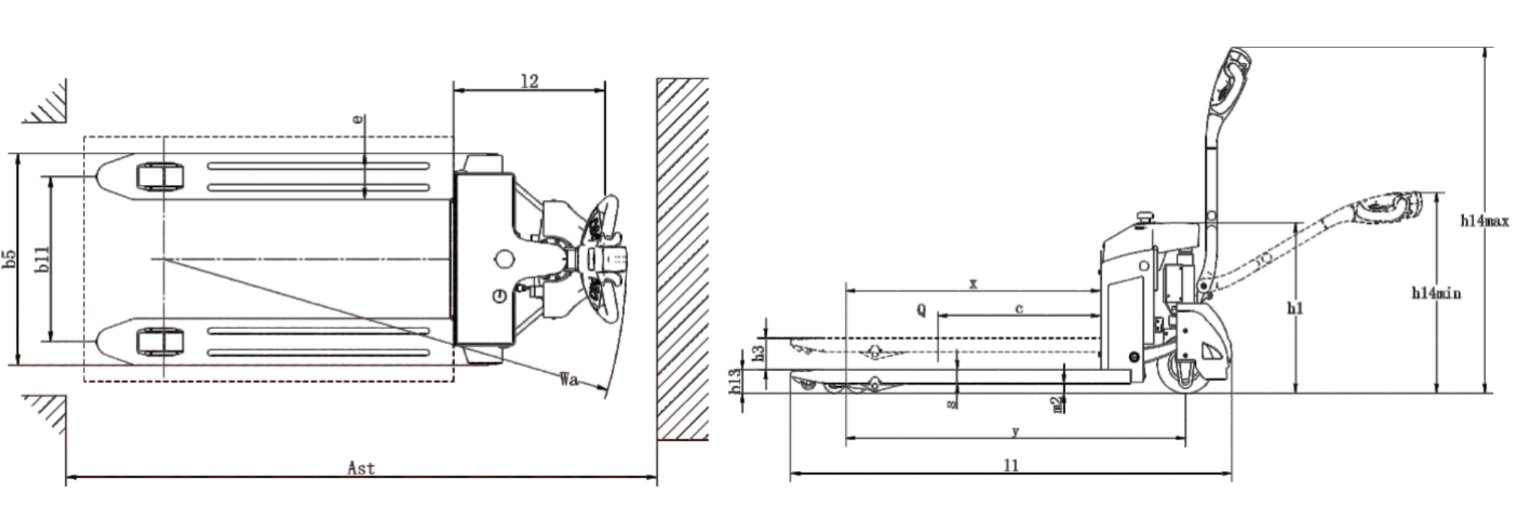

| Characteristics | ||
| Model | SL15GI | |
| Power unit | Electric | |
| Operation | Pedestrian | |
| Rated traction weight | Q (kg) | 1500 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 944 |
| Wheel base | y(mm) | 1262 |
| Service weight with battery | kg | 193/200 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Ф210x70 |
| Bearing wheel size | Φ×w(mm) | Ф80x60 |
| Wheels,numberfront/rear(x= driven) | 4/1x | |
| Track width | b11(mm) | 410/535 |
| Dimensions | ||
| Lift | h3 (mm) | 200 |
| Overall height(With handle | h14 (mm) | 612/1195 |
| lowered hength | h13 (mm) | 85 |
| Overall length | l1(mm) | 1628 |
| Length to fork face | l2(mm) | 478 |
| Overall width | b1/ b2 (mm) | 560/685 |
| Fork dimensions | s/e/l(mm) | 50/150/1150 |
| Width of forks | b5 (mm) | 560/685 |
| Min.Ground clearance | m2 (mm) | 35 |
| Aisle width with pallet 1000x1200 across forks | Ast(mm) | 1831 |
| Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 1881 |
| Min.Turning radius | Wa (mm) | 1425 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 4.2/4.5 |
| Lifting speed, with/without load | (mm/s) | 22/25 |
| Lowering speed, with/withoutload | (mm/s) | 38/28 |
| Maximum climbing ability, with/without load | (%) | 6/10 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor, 60 minute rating | (kw) | 0.75 |
| Lift motor rating at $3 15% | (kw) | 0.8 |
| Battery voltage/rated capacity | (V/Ah) | 2×12/75 |
| Battery weight(+ 5%) | (kg) | 40 |
| Other | ||
| Type of drive control | DC | |
| Noise level at operator 's ear | (dB(A)) | ≤70 |
| Type of steering | Mechanical |
|
|
