PROFESSIONALELECTRIC FORKLIFT MANUFACTURER
1 Years
| Ask Lasest Price | |
| Brand Name : | JIALIFT |
| Model Number : | CL1026 |
| Certification : | CE，UL |
| Price : | Negotiation |
| Supply Ability : | 200 units per day |
| Delivery Time : | 3 days |
Electric Reach Stacker CL1026&1032.pdf

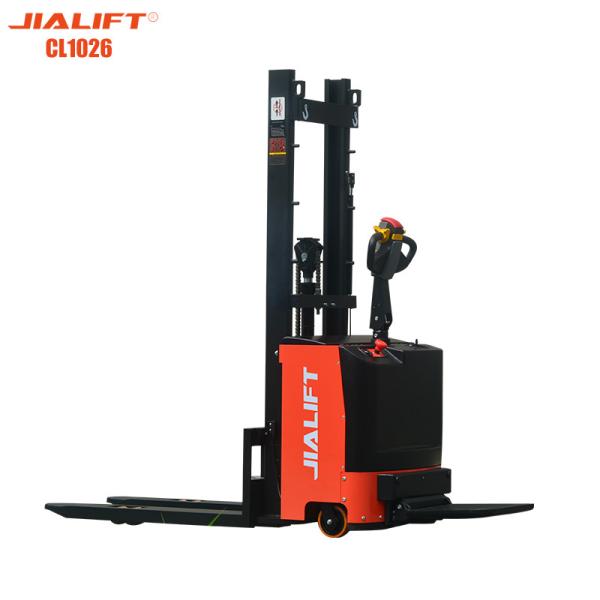

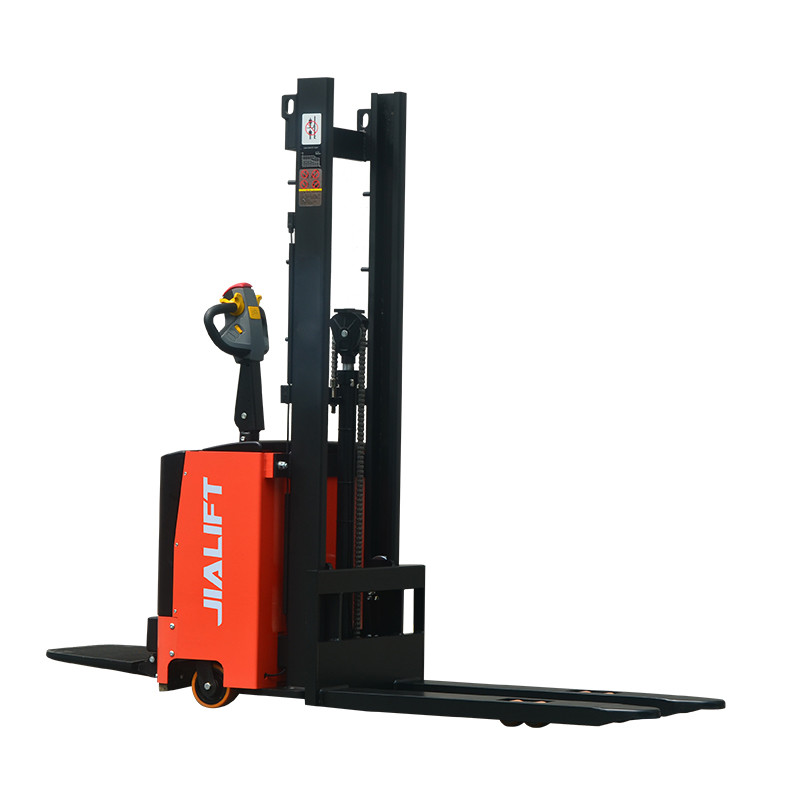

Electric stacker(Standing on) CL1026 Rated traction weight 1000kg Lifting height 2600mm Electric Reach Stacker
Product Features
1.Imported AC controller,has stepless speed control,reverse warping
function and short circuit protectionfunction;
2.Control the emergency reverse switch on the handle,when the
vehicle is retracted,prevent the operator frombeing squeezed;
3.Standard the lifting limit function,when the fork rises tothe
top,the system automatically cuts off the uplinkpower supply,smooth
parking;
4.Standard with a high-serving speed limit device,whenthe door
frame is from the bottom.After the distance israised,the driving
speed is automatically reduced,andthe operation is improved;
5.Operating handle is adding turtle speed switches,low-speed
control is more accurate;
6.When the door frame falls to the bottom position,thedriving speed
is automatically accelerated and the workefficiency is improved.
| Characteristics | ||
| Model | CL1026 | |
| Power unit | Electric | |
| Operation | Standing on | |
| Rated traction weight | Q(kg) | 1000 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 675 |
| Wheel base | y(mm) | 1190 |
| Service weight with battery | kg | 887 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ250×80 |
| Bearing wheel size | Φ×w(mm) | Φ80×70 |
| additional wheels(dimensions) | Φ×w(mm) | Φ150×58 |
| Wheels,number front/rear(x=driven | 1,4/2 | |
| Track width | b10(mm) | 675 |
| Track width | b11(mm) | 390/515 |
| Dimensions | ||
| Free lift | h1(mm) | 1877 |
| Lift | h2(mm | 0 |
| Height of mast,extended | h3(mm | 2600 |
| Height of seat/stand-on platform | h4(mm | 3137 |
| Overall height(With handle | h14(mm) | 1040/1415 |
| Lowered fork heighi | h13(mm | 86 |
| Overall length | l1(mm) | 1955 |
| Length to fork face | l2(mm) | 764 |
| Overall width | b1/b2 (mm) | 808 |
| Fork dimensions | s/e/l(mm) | 60/180/1150 |
| Width of forks | b5(mm) | 570/695 |
| Min.Ground clearance | m2(mm) | 26 |
| Aisle width with pallet 1000 x 1200 across forks | Ast (mm) | 2380 |
| Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 2360 |
| Min.Turning radius | Wa (mm) | 1495 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 5.2/5.5 |
| Lifting speed,with/without load | (mm/s) | 100/135 |
| Lowering speed,with/without load | (mm/s) | 142/124 |
| Maximum climbing ability,with/without load | (%) | 6/8 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 1.5 |
| Lift motor rating at S3 15% | (kW) | 2.2 |
| Battery voltage/rated capacity | (V/Ah) | 24/210 |
| Battery weight(±5%) | (kg) | 190 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator's ear | (dB(A)) | ≤70 |
|
|
