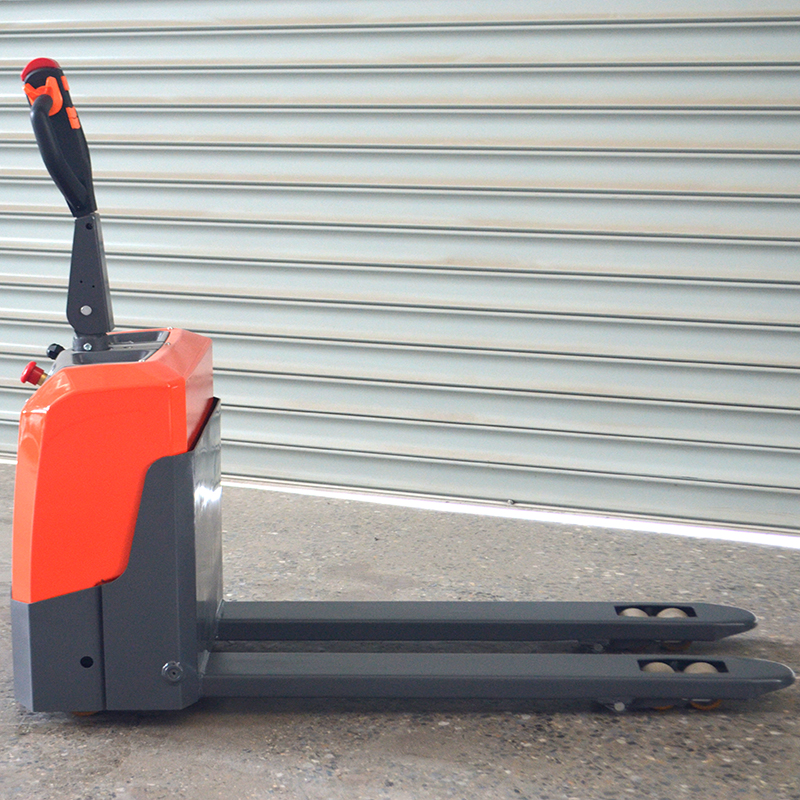

Electric pallet truck(Pedestrian) SL15S5 Rated traction weight 1500kg Lifting height 200mm
Electric Pallet Truck SL15S5&SL20S5.pdf
Electric pallet truck(Pedestrian) Rated traction weight 1500kg Lifting height 200mm
Product Features
1.The vehicle size is small, small turning radius canbe carried outin asmall space occasions.
2.Adopt upper horizontal driving wheel structurebetter driving passability,more convenient toreplace the wheel and motor.
3.The strong metal cover protects the motor andwheels, and also reliably protects the operator'sfeet to improve safety.
4.Rewind anti-collision switch, driving brakingusing electromagnetic braking and motor brakingdouble guarantee, fully consider the operator'sdriving safety.
5.Large capacity maintenance-free battery, built-incharger,to provide convenience for customers.
6.Integral handle with password lock,CANcommunication,walkingupright function,remaining powerLCD display.
7.Balance wheels on both sides ensure higherstabilityof the vehicle and prevent grounddamage.

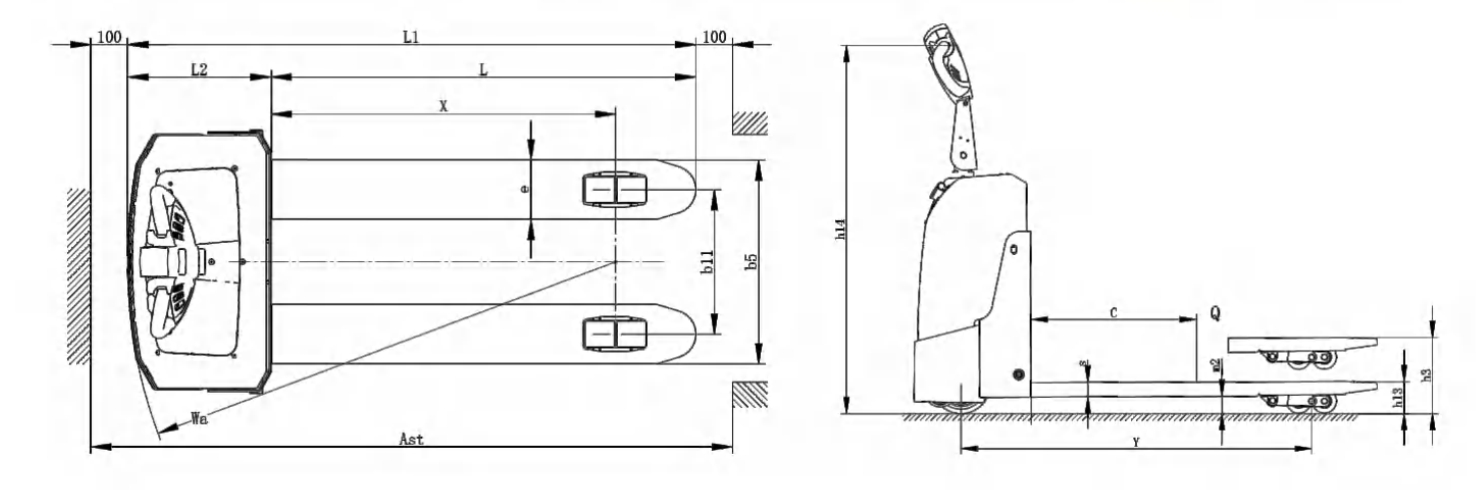

| Characteristics | ||
| Model | SL15S5 | |
| Power unit | Electric | |
| Operation | Pedestrian | |
| Rated traction weight | Q(kg) | 1500 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 931 |
| Wheel base | y(mm) | 1158 |
| Service weight with battery | kg | 245 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ195×70 |
| Bearing wheel size | Φ×w(mm) | Φ80×70 |
| Additional wheels(dimensions) | Φ×w(mm) | Φ100×40 |
| Wheels,number front/rear (x =driven) | 1x+2/4 | |
| Track width | b11(mm) | 390/525 |
| Dimensions | ||
| Lift | h3(mm) | 200 |
| Overall height(With handle) | h14(mm) | 865/1170 |
| Fork Height,Lowered | h13 (mm) | 85 |
| Overall length | l1(mm) | 1532 |
| Length to fork face | l2(mm) | 382 |
| Overall width | b1/b2(mm) | 710 |
| Fork dimensions | s/e/l(mm) | 50/160/1150 |
| Width of forks | b5(mm) | 550/685 |
| Min.Ground clearance | m2(mm) | 35 |
| Aisle width with pallet 1000x1200 across forks | Ast (mm) | 1735 |
| Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 1785 |
| Min.Turning radius | Wa(mm) | 1315 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 4.2/4.5 |
| Lifting speed,with/without load | (mm/s) | 35/38 |
| Lowering speed,with/without load | (mm/s) | 60/25 |
| Maximum climbing ability,with/without load | (%) | 5/10 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 0.75 |
| Lift motor rating at S3 15% | (kW) | 0.8 |
| Battery voltage/rated capacity | (V/Ah) | 2×12/75 |
| Battery weight (±5%) | (kg) | 40 |
| Other | ||
| Type of drive control | DC | |
| Noise level at operator 's ear | (dB(A)) | ≤70 |
| Type of steering | Mechanical |
|
|
