| Brand Name : | JIALIFT |
| Model Number : | QGB20S |
| Certification : | CE，UL |
| Price : | Negotiation |
| Supply Ability : | 200 units per day |
| Delivery Time : | 3 days |

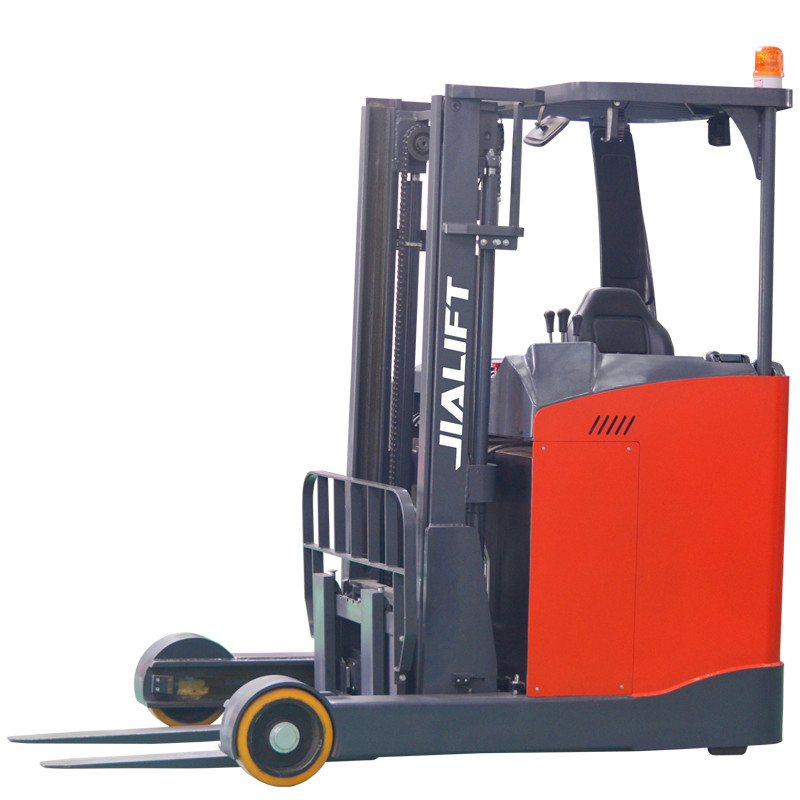

Electric reach stacker(Standing on) QGB20S Rated traction weight 1300kg Lifting height 4500mm Electric Reach Forklift
Electric Reach Forklift QGB20S.pdf
Electric reach stacker(Standing on) Rated traction weight 2000kg Lifting height 3000mm Electric Reach Forklift
Product Features
1.Adopt high quality channel steel to improve the service life and
excellent stability of the frame;
2.Wide and comfortable cab and adjustable seat,more reflects
thehumanized design of the car;
3.Adopt double electric control,the lifting of goods and the
driving offorklift can realize stepless speed regulation;
4.Wide and strong forklift chassis,large and high strength
bearingwheel design,to ensure sufficient stability of the vehicle;
5.High speed limit setting,when the fork is lifted to a certain
height,the vehicle speed will automatically decrease,to ensure the
safetyof high-altitude operation;
6.Electronic power steering system,make the steering flexible
andlight;Automatic deceleration function at corners,safer driving;
7.The front two wheels adopt hydraulic braking,and the braking of
thedriving motor is controlled by the electric control
system,whichmakes the start,running and braking of the forklift
more effective
8.Hydraulic system explosion-proof design,even if the pipe
burst,the door frame will not drop quickly,improve safety;
9.The hinged design of seat cover and back cover facilitates
thedetection,maintenance and replacement of components;
10.The controller has self-diagnosis function,the fault code can
bedisplayed after the hand-held unit is connected with the
controller,and the fault can be checked quickly and accurately.
| Characteristics | ||
| Model | QGB20S | |
| Power unit | Electric | |
| Operation | Seated on | |
| Rated traction weight | Q(kg) | 2000 |
| Load centre | c(mm) | 500 |
| Axle centre to fork face | x(mm) | 372 |
| Wheel base | y(mm) | 1500 |
| Service welght with battery | kg | 2880 |
| Wheels/Tyres | ||
| Wheelg type | PU | |
| Driving wheel size | Φ×w(mm) | Φ343×130 |
| Bearing wheel size | Φ×w(mm) | Φ310×135 |
| Wheels,number front/rear (x=driven) | 1,2 | |
| Track width | b11(mm) | 1199 |
| Dimensions | ||
| Mast/fork carriage tilt,forward/backward | a/b(°) | 3/5 |
| Helght of mast,lowered | h1(mm) | 2190 |
| Lift | h3(mm) | 3000 |
| Height of mast,extended | h4(mm) | 3880 |
| Helght of overhead guard (cabin) | h6(mm) | 2380 |
| Fork Height,Lowered | h13(mm) | 45 |
| Overall length | l1(mm) | 2508 |
| Length to fork face | l2 (mm) | 1438 |
| Overall width | b1/b2(mm) | 1270/1360 |
| Fork dimenslons | s/e/l(mm) | 40/120/1070 |
| Width of forks | b5(mm) | 825 |
| Distance Between Suporrts arms/loading surfaces | b4(mm) | 922 |
| Reach distance | l4(mm) | 570 |
| Min.Ground clearance | m2(mm) | 72 |
| Aisle width with pallet 1000x 1200 across forks | Ast (mm) | 2900 |
| Aisle width with pallet 800x 1200 along forks | Ast (mm) | 2950 |
| Min.Turning radius | Wa(mm) | 1820 |
| Length across wheel arms | l7(mm | 1987 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 9/9.5 |
| Lifting speed,with/without load | (mm/s) | 240/300 |
| Lowering speed,with/without load | (mm/s) | 290/300 |
| Reach speed,laden/unladen | (mm/s) | 72/70 |
| Maximum climbing ability.with/without load | (%) | 10/15 |
| Service brake | electromagnefism+hytraulic pressure | |
| Drive | ||
| Drive motor,60 minute rating | (kw) | 6 |
| Lift motor rating at S3 15% | (kW) | 11 |
| Baltery voltage/rated capacity | (V/Ah) | 48/420 |
| Battery weight (±5%) | (kg) | 700 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator 's ear | (dB(A)) | ≤75 |
|
|
