PROFESSIONALELECTRIC FORKLIFT MANUFACTURER
1 Years
| Ask Lasest Price | |
| Brand Name : | JIALIFT |
| Model Number : | Q1545GC |
| Certification : | CE，UL |
| Price : | Negotiation |
| Supply Ability : | 200 units per day |
| Delivery Time : | 3 days |
Electric Reach Stacker Q1530GC&Q1545GC.pdf

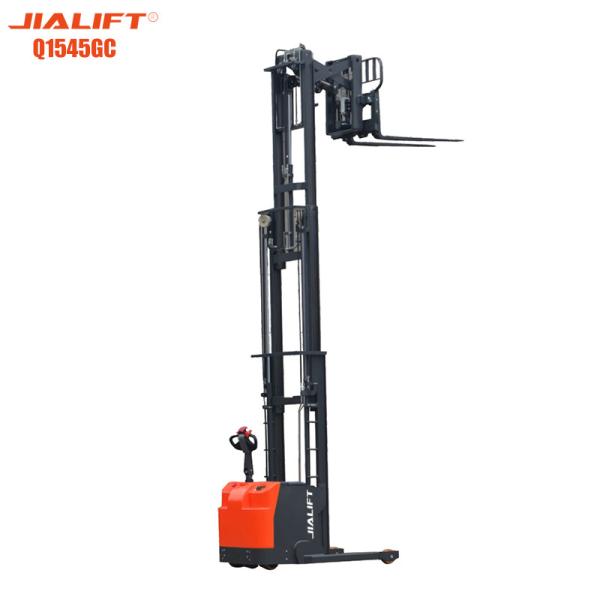

Electric stacker(Standing on) Q1545GC Rated traction weight 1500kg Lifting height 4500mm Electric Reach Stacker
Product Features
1.Shear forward device ensures that the cargo fork can betelescoped
back and forth without moving the door frame;
2.Small turning radius,suitable for use in narrow channels;
3.Operation fork expansion and stability,no impact;
4.Strong legs and sturdy frame and door frame;
5.When lifting to a certain height,the driving speed
willautomatically decrease to ensure the safety of operation;
6.Standard lifting limit function,when the fork rises to thetop,the
system will automatically cut off the uplink power,stop
smoothly,effectively prevent the "top"accident:atthe same time,it
can also reduce the energy waste oflong two-voltage system and
related components life;
7.Standard emergency stop switch,when the vehicle is in adangerous
state,press the emergency stop switch cancut off the power,the
vehicle stops running,protect thesafety of the operator and
equipment;
8.performance grass more drive system,responsive,dynamic
characteristics,load handling ability,power
output smooth,effective proof of long battery life.
| Characteristics | ||
| Model | Q1545GC | |
| Power unit | electric | |
| Operation | Seated-on | |
| Rated traction weight | Q(kg) | 1500 |
| Load centre | c(mm) | 500 |
| Axle centre to fork face | x(mm) | 350 |
| Wheel base | y(mm) | 1456 |
| Service weight with battery | kg | 2500 |
| Wheels/Tyres | ||
| Wheels type | polyurethane | |
| Driving wheel size | Φ×w(mm) | Φ250×75 |
| Bearing wheel size | Φ×w(mm) | Φ150×82 |
| additional wheels (dimensions) | Φ×w(mm) | Φ149×60 |
| Wheels,number fronVrear (x=driven) | 1,4/2 | |
| Track width | b10(mm) | 620 |
| Track width | b11(mm) | 984 |
| Dimensions | ||
| Mast/fork carriage tilt,forward/backward | a/b(°) | 3/5 |
| Free lift | h1(mm) | 2220 |
| Lilt | h2 (mm) | 1310 |
| Height of mast,extended | h3(mm) | 4500 |
| Height of seat/stand-on platform | h4(mm) | 5425 |
| Overall height(With handle | h14(mm) | 1050/1450 |
| Lowered fork height | h13(mm) | 40 |
| Overall length | l1(mm) | 2375(950) |
| Length to fork tace | l2 (mm) | 1400 |
| Overall width | b1/b2(mm) | 896/1113 |
| Fork dimensions | s/e/l(mm) | 35/100/950 |
| Width of forks | b5(mm) | 200-840 |
| Forward distance | l4(mm) | 500 |
| Min.Ground clearance | m2(mm) | 55 |
| Aisle width with pallet 1000x1200 across forks | Ast(mm) | 2850 |
| Aisle width with pallet 800x 1200 along forks | Ast (mm) | 2905 |
| Min.Turning radius | Wa(mm) | 1765 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 5.2/5.5 |
| Lilting speed,with/without load | (mm/s) | 100/150 |
| Lowering speed,with/without load | (mm/s) | 170/220 |
| Forward speed,with'without load | (mm/s) | 70/60 |
| Maximum climbing ability,withiwithout load | (%) | 3/6 |
| Drive | ||
| Service brake | electromagnotic | |
| Drive motor.60 minute rating | (kW) | 1.5 |
| Lilt motor rating at S3 15% | (kW) | 4.5 |
| Battery voltago/rated capacity | (V/Ah) | 24/350 |
| Battery weight (±5%) | (kg) | 320 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator 's ear | (dB(A)) | ≤70 |
|
|
