| Brand Name : | JIALIFT |
| Model Number : | CL1645QD |
| Certification : | CE，UL |
| Price : | Negotiation |
| Supply Ability : | 200 units per day |
| Delivery Time : | 3 days |
Electric Reach Stacker CL1645QD&CL1655QD.pdf

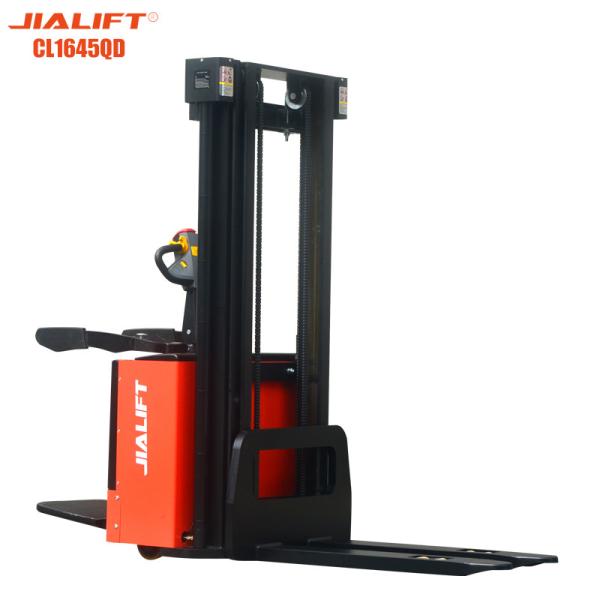

Electric stacker(Standing on) CL1645QD Rated traction weight 1600kg Lifting height 4500mm Electric Reach Stacker
Product Features
1.All-pointed standard electronic power steering system,help the
response very well,the handle manipulation iscomfortable,greatly
reduces the operator's laborintensity,turning to low speed,high
speed,steering moreintelligent,more accurate,driving feel more
Smooth;
2.High performance battery,cycle performance,and deepdischarge
recovery ability,superior battery life,longservice life is long;
3.Configure the protective arm on both sides of the drivingposition
to protect the operator security;
4.The center of the drive system sets a floating bracket toensure
the stability of the vehicle operation,and the bodyis smooth and
not tilted;
5.The pedal foot feels comfortable,64 pieces of butterflyshrapnel
can quickly absorb the vibration generated bythe vehicle,alleviate
the impact of the road surface;thenumber of components required for
the AC motor is small,and there is no need to replace the loss of
regularreplacement.Almost no maintenance,more efficient,and more
robust.
| Characteristics | ||
| Model | CL1645QD | |
| Power unit | Electric | |
| Operation | Standing on | |
| Rated traction weight | Q(kg) | 1600 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 675 |
| Wheel base | y(mm) | 1320 |
| Service weight with battery | kg | 1260 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ250×75 |
| Bearing wheel size | Φ×w(mm) | Φ80×70 |
| Additional wheels(dimensions) | Φ×w(mm) | Φ150×58 |
| Wheels,number front/rear (x =driven) | 1,4/2 | |
| Track width | b10(mm) | 828 |
| Track width | b11(mm) | 390/515 |
| Dimensions | ||
| Free lift | h1(mm | 2054 |
| Lift | h2(mm) | 1561 |
| Height of mast,extended | h3(mm) | 4500 |
| Height of seat/stand-on platform | h4(mm) | 5060 |
| Overall height(With handle | h14(mm | 1040/1415 |
| Lowered fork height | h13(mm) | 86 |
| Overall length | l1(mm) | 2085 |
| Length to fork face | l2 (mm) | 925 |
| Overall width | b1/b2(mm) | 1060 |
| Fork dimensions | s/e/l(mm) | 60/180/1150 |
| Width of forks | b5(mm) | 570/695 |
| Min. Ground clearance | m2 (mm) | 26 |
| Aisle width with pallet 1000 x 1200 across forks | Ast (mm) | 2503 |
| Aisle width with pallet 800x 1200 along forks | Ast (mm) | 2480 |
| Min.Turning radius | Wa(mm) | 1630 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 5.2/5.5 |
| Lifting speed,with/without load | (mm/s) | 100/140 |
| Lowering speed,with/without load | (mm/s) | 175/110 |
| Maximum climbing ability,with/without load | (%) | 6/8 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 1.5 |
| Lift motor rating at S3 15% | (kW) | 3 |
| Battery voltage/rated capacity | (V/Ah) | 24/240 |
| Battery weight (±5%) | (kg) | 240 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator's ear | (dB(A)) | ≤70 |
|
|
