| Brand Name : | JIALIFT |
| Model Number : | CL2036GC |
| Certification : | CE，UL |
| Price : | Negotiation |
| Supply Ability : | 200 units per day |
| Delivery Time : | 3 days |

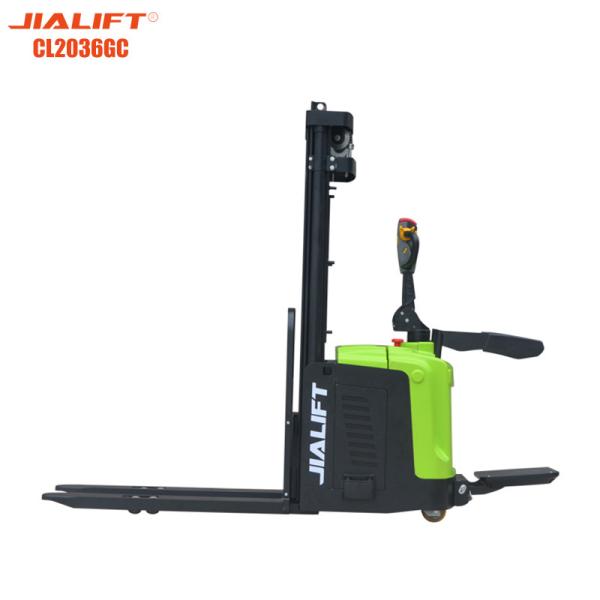

Electric double-lifting stacker CL2036GC Rated traction weight 2000kg Lifting height 3630mm Electric Reach Stacker
Electric Reach Stacker CL-GC.pdf
Electric double-lifting stacker CL2036GC Rated traction weight 2000kg Lifting height 3630mm Electric Reach Stacker
Product Features
1.Advanced vertical AC drive system,motor can get more energy and
greater brake torque,power is morepowerful,acceleration performance
is better;
2.All-system standard electronic power steeringsystem,helping to
respond very sensitive to thehandle manipulation department;
3.Double lifting design,can carry two pallets at thesame time,and
there is a function of stacker;
4.Configure boost red,fast speed,large output,lowenergy
consumption,prevent the slippage whenheavy load:
5.Because there is a lifting car leg,it can overcome
theramp,unlatted ground or other obstacles than thestacked car;
6.Standard the boost limit function,when the fork risesto the
top,the system automatically cuts off the uplinkpower supply,smooth
parking,effectively prevents the occurrence of "the top 'accident.
| Charactenistics | ||
| Model | CL2036GC | |
| Power unit | Electric | |
| Operation | Standing on | |
| Ratod traction weight | Q(kg) | 2000 |
| Load capacity of the mast | Q(kg) | 1000 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 848 |
| Wheel base | y(mm) | 1472 |
| Service weight with battery | kg | 1190 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ250×75 |
| Bearing wheel size | Φ×w(mm) | Φ480×70 |
| Additional wheels(dimensions) | Φ×w(mm) | Φ115×55 |
| Wheels,number front/rear (x =drven) | 1x,2/4 | |
| Track widith | b10(mm) | 580 |
| Track width | b11(mm) | 505/390 |
| Dimensions | ||
| Free lift | h1(mm) | 2349 |
| Lift | h2 (mm) | 0 |
| Height of mast,extended | h3 (mm) | 3630 |
| Height of seat/stand-on platform | h4(mm) | 4043 |
| The initial boost | h5 (mm) | 120 |
| Overall height(With handle) | h14(mm) | 1065/1365 |
| Lowered fork height | h13(mm) | 90 |
| Overall length | l1(mm) | 2000 |
| Length to fork face | l2(mm) | 850 |
| Overall width | b1/b2 (mm) | 808 |
| Fork dimensions | s/e/l(mm) | 60/180/1150 |
| Width of forks | b5(mm) | 685/570 |
| Min.Ground clearance | m2(mm) | 28 |
| Aisle width with pallet 1000x1200 across forks | Ast (mm) | 2530 |
| Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 2443 |
| Min.Turning radius | Wa (mm) | 1710 |
| Performance | ||
| Travel speed,with/without load | (km/h) | 5.2/5.5 |
| Lilting speed,with/without load | (mm/s) | 100/130 |
| Lowering speed,with/wthout load | (mm/s) | 180/140 |
| Maximum clmbing ablity,with/wihout load | (%) | 6/8 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute raling | (kW) | 2.5 |
| Lift motor rating at S3 15% | (kW) | 2.2 |
| Battery voltage/rated capacity | (V/Ah) | 24/210 |
| Battery weight (±5%) | (kg) | 190 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator's ear | (dB(A)) | ≤70 |
|
|
