| Brand Name : | JIALIFT |
| Model Number : | CL2030GF |
| Certification : | CE，UL |
| Price : | Negotiation |
| Supply Ability : | 200 units per day |
| Delivery Time : | 3 days |

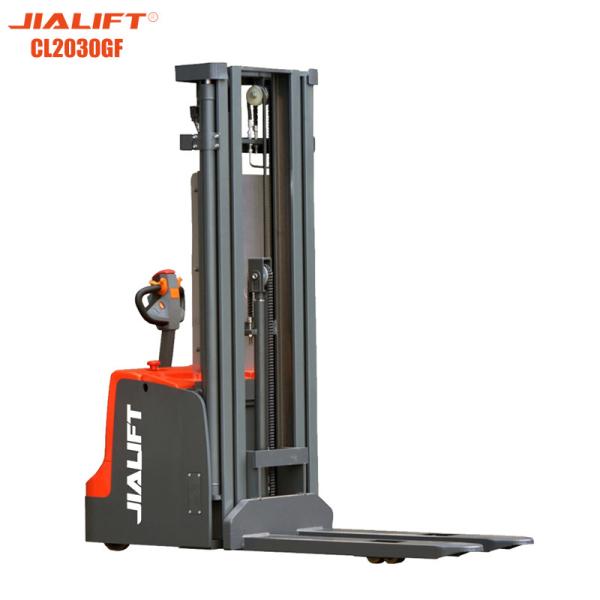

Electric stacker(Pedestrian) CL2030GF Rated traction weight 2000kg Lifting height 3000mm Electric Reach Stacker
Electric Reach Stacker CL2030GF.pdf
Electric stacker(Pedestrian) CL2030GF Rated traction weight 2000kg Lifting height 3000mm Electric Reach Stacker
Product Features
1.Powerful AC motor,plus.Avolve gearbox providessuperior
acceleration performance,improves workefficiency,and saves energy;
2.Imported AC controller,high power MOSFETS driver,high
frequency,efficient,quiet,has stepless speedregulation and
anti-warming function.Improvedtemperature protection and
compensation functionsto achieve thermal protection and stable
output;
3.Key switch and electric meter,horn,up and downbutton,turtle speed
switch are integrated in theoperation handle,easy to operate;
4.Operation handle is a long-term design of walkingvehicles,in line
with ergonomic principles,comfortable operation;
5.Side driving driver design,effectively reducing jobchannels,small
turn radius,better field of view,suitable for narrow space
operations.
| Characteristics | ||
| Model | CL2030GF | |
| Power uni | Electric | |
| Operation | Pedestrian | |
| Rated traction weight | Q(kg) | 2000 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 672 |
| Wheel base | y(mm) | 1384 |
| Service weight with battery | kg | 966 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ230×75 |
| Bearing wheel size | Φ×w(mm) | Φ80x70 |
| additional wheels (dimensions) | Φ×w(mm) | Φ150×58 |
| Wheels,number front/rear (x=driven) | 1x+1/4 | |
| Track width | b10(mm) | 526 |
| Track width | b11(mm) | 390/515 |
| Dimensions | ||
| Free lift | h1(mm | 1991 |
| Lift | h2 (mm) | 166 |
| Height ol mast,extended | h3 (mm) | 3000 |
| Height of seat/stand-on platform | h4(mm) | 3408 |
| Overall height(With handle | h14(mm) | 870/1200 |
| Lowered fork height | h13(mm) | 86 |
| Overall length | l1(mm) | 2022 |
| Length to fork face | l2(mm) | 872 |
| Overall width | b1/b2(mm) | 795 |
| Fork dimensions | s/e/l (mm) | 60/180/1150 |
| Width of lorks | b5(mm) | 570/695 |
| Min.Ground clearance | m2(mm) | 26 |
| Aisle width with pallet 1000x1200 across forks | Ast(mm) | 2435 |
| Aisle width with pallet 800x1200 along forks | Ast(mm) | 2412 |
| Min.Turning radius | Wa(mm) | 1550 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 4.0/4.2 |
| Lifting speed,with/without load | (mm/s) | 80/210 |
| Lowering speed,with/without load | (mm/s) | 152/160 |
| Maximum climbing ability,with/without koad | (%) | 4/10 |
| Service brake | Elactromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 1.5 |
| Lift motor rating at S3 15% | (kW) | 3.0 |
| Battery voltage/rated capacity | (V/Ah) | 24/210 |
| Battery weight (±5%) | (kg) | 195 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator 's ear | (dB(A)) | ≤70 |
| Type of steering | Mechanical steering |
|
|
