| Brand Name : | JIALIFT |
| Model Number : | CL1530JB |
| Certification : | CE，UL |
| Price : | Negotiation |
| Supply Ability : | 200 units per day |
| Delivery Time : | 3 days |

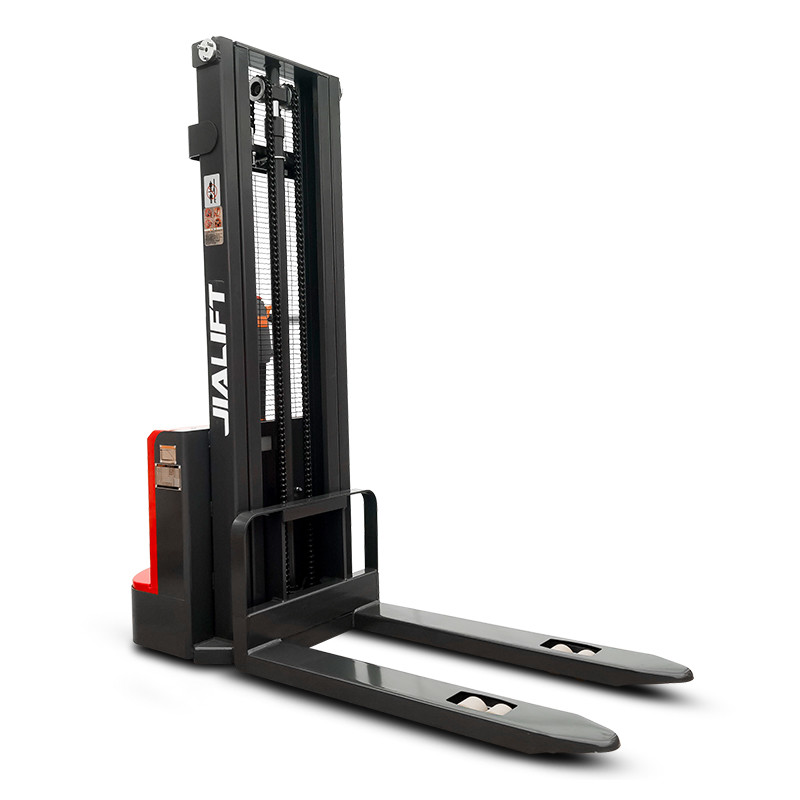

Electric stacker(Pedestrian) CL1530JB Rated traction weight 1500kg Lifting height 3000mm Electric Reach Stacker
Electric Reach Stacker CL1530JB.pdf
Electric stacker(Pedestrian) CL1530JB Rated traction weight 1500kg Lifting height 3000mm Electric Reach Stacker
Product Features
1.Setting up a reinforcing rib between the inside and outside
portraits, ensuring that the door frame does not pour it forward,
and the stability of the vehicle is better;
2.Germany imported waterproof micro-power switch,adapt to cold, moist, dust and other harsh environments;
3.Key switch, electric meter, up and down button, turtle speed switch are integrated in the operation handle, easy to operate;
4.Operate handles Configure high quality air pressure spring, loosen the handle, automatically reset, durable;
5.Operating handles are long-range vehicles, in line with ergonomic principles,comfortable operation;
6.Side driving driver design, effectively reducing job channels, small turn radius, better vision, suitable for narrow space operations;
7.Maintenance-free batteries do not need to be replaced with other tools, more convenient.
| Characteristics | ||
| Model | CL1530JB | |
| Power unit | Electric | |
| Operation | Pedestrian | |
| Rated traction weight | Q(t) | 1.5 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 780 |
| Wheel base | y(mm) | 1225 |
| Service weight with battery | kg | 504 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ210×70 |
| Bearing wheel size | Φ×w(mm) | Φ80×70 |
| additional wheels(dimensions) | Φ×w(mm) | Φ115×55 |
| Wheels, number front/rear (x = driven) | 1x+1/4 | |
| Track width | b10(mm) | 522 |
| Track width | b11(mm) | 410/535 |
| Dimensions | ||
| Free lift | h1(mm) | 1995 |
| Lift | h2(mm) | 0 |
| Height of mast, extended | h3(mm) | 3000 |
| Height of seat/stand-on platform | h4(mm) | 3452 |
| Overall height(With handle | h14(mm) | 700/1225 |
| Lowered fork height | h13(mm) | 86 |
| Overalllength | l1(mm) | 1740 |
| Length to fork face | l2(mm) | 590 |
| Overall width | b1/b2(mm) | 795 |
| Fork dimensions | s/e/l(mm) | 60/160/1150 |
| Width of forks | b5(mm) | 570/695 |
| Min.Ground clearance | m2(mm) | 26 |
| Aisle width with pallet 1000 x 1200 across forks | Ast(mm) | 2245 |
| Aisle width with pallet 800 x 1200 along forks | Ast(mm) | 2185 |
| Min.Turning radius | Wa(mm) | 1405 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 4.0/4.2 |
| Lifting speed, with/without load | (mm/s) | 92/136 |
| Lowering speed, with/without load | (mm/s) | 112/98 |
| Maximum climbing ability,with/without load | (%) | 3/10 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor, 60 minute rating | (kW) | 0.75 |
| Lift motor rating at S3 15% | (kW) | 2.2 |
| Battery voltage/rated capacity | (V/Ah) | 2×12/100 |
| Battery weight(± 5%) | (kg) | 2×27 |
| Other | ||
| Type of drive control | DC | |
| Noise level at operator 's ear | (dB(A)) | ≤70 |
| Type of steering | Mechanical |
|
|
